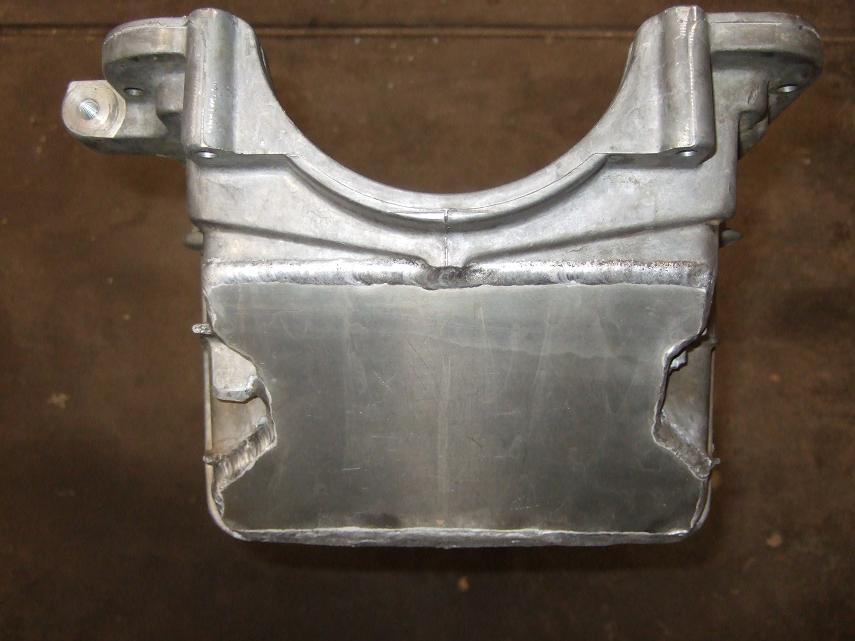

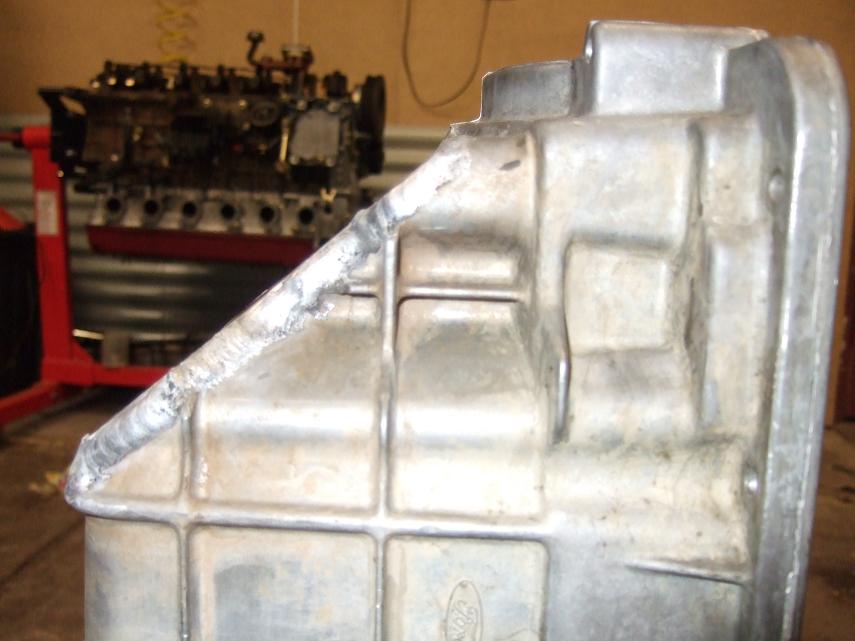

Close Pictures and how to mod an AU sump to Fit EF/EL

Just by looking at the pictures, you can tell where to cut the sump,
pretty much from the top of the 'V' under the collar to the FIRST main casting rib.

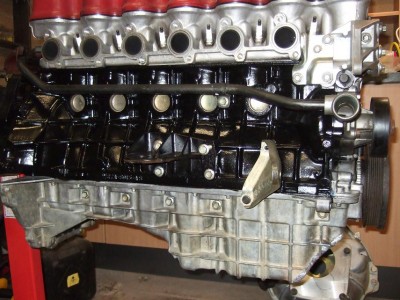

Front View
Attachment:
Sump001.JPG [ 63.66 KiB | Viewed 1708 times ]

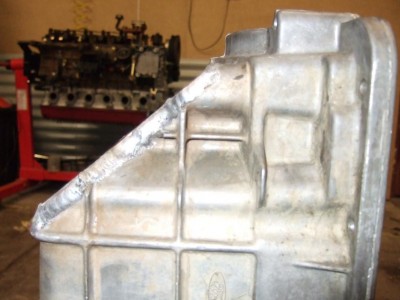

Offside
Attachment:
Sump002.JPG [ 87.8 KiB | Viewed 1556 times ]

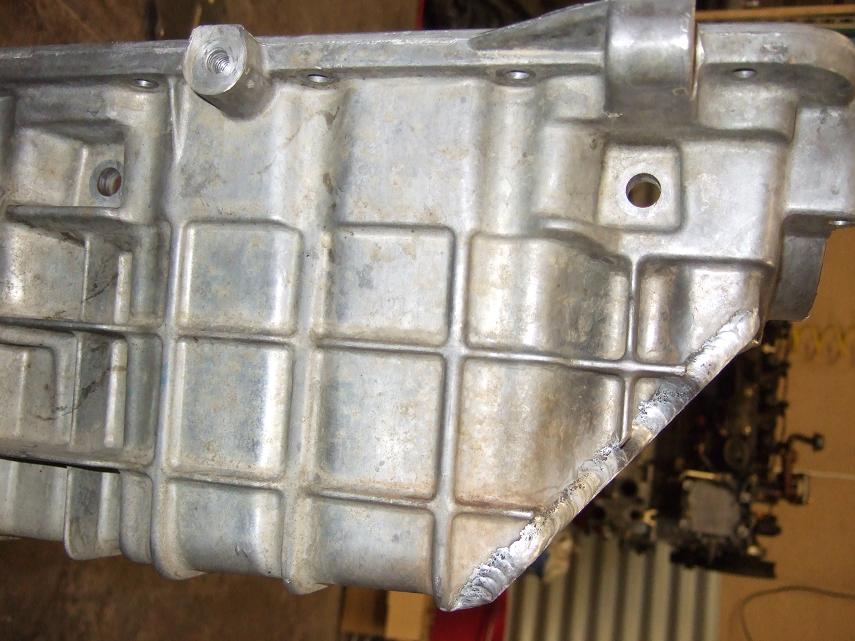

Nearside
Attachment:
Sump003.JPG [ 66.19 KiB | Viewed 1348 times ]


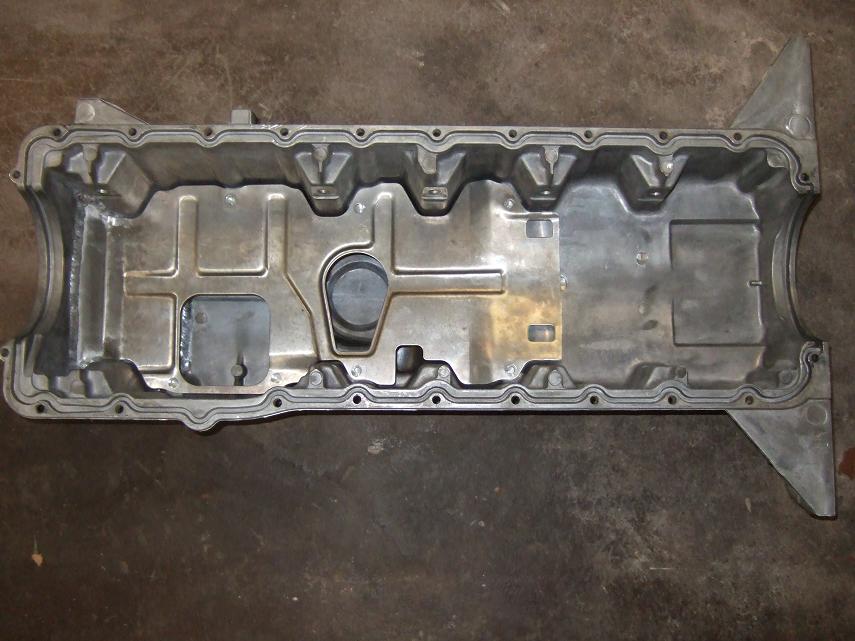

Weld the inside as well, this helps the oil flow and seals the sump nicely.

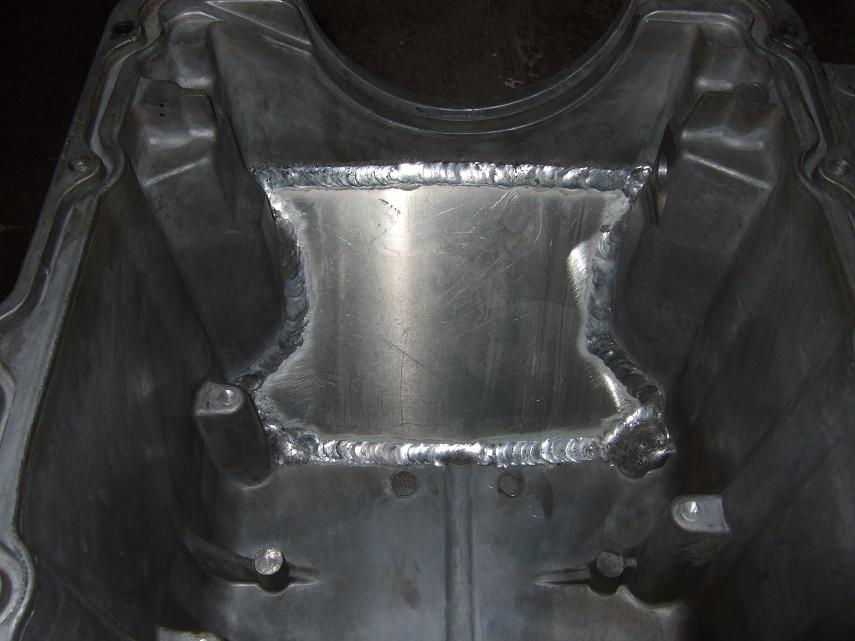

Inside
Attachment:
Sump004.JPG [ 66.44 KiB | Viewed 1480 times ]



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Sun Jun 21, 2009 11:30 pm
Technical Contributor
Offline
User avatar

Age: 45

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

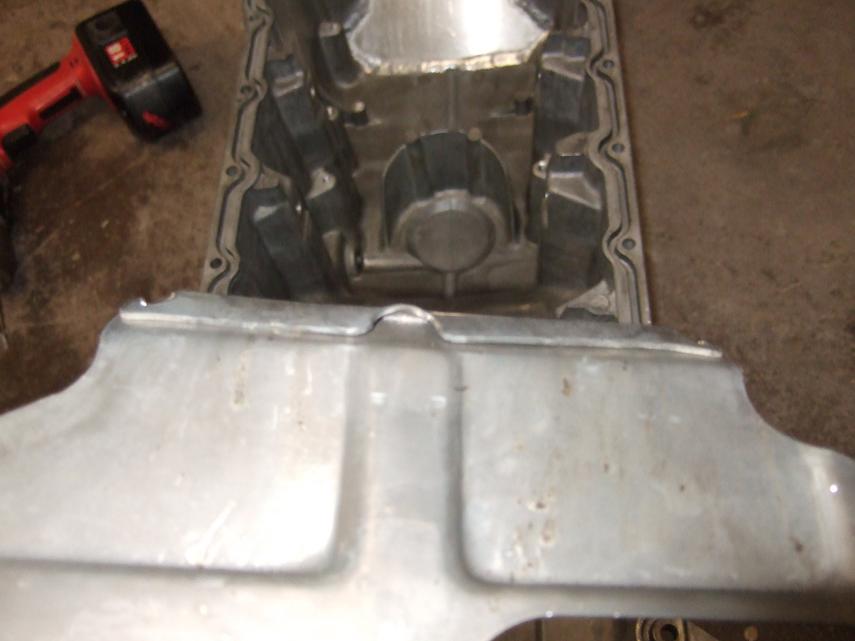

Fold the Oil baffle over leaving enough space for oil to slide down the front.
Attachment:
Sump005.JPG [ 54.35 KiB | Viewed 1423 times ]

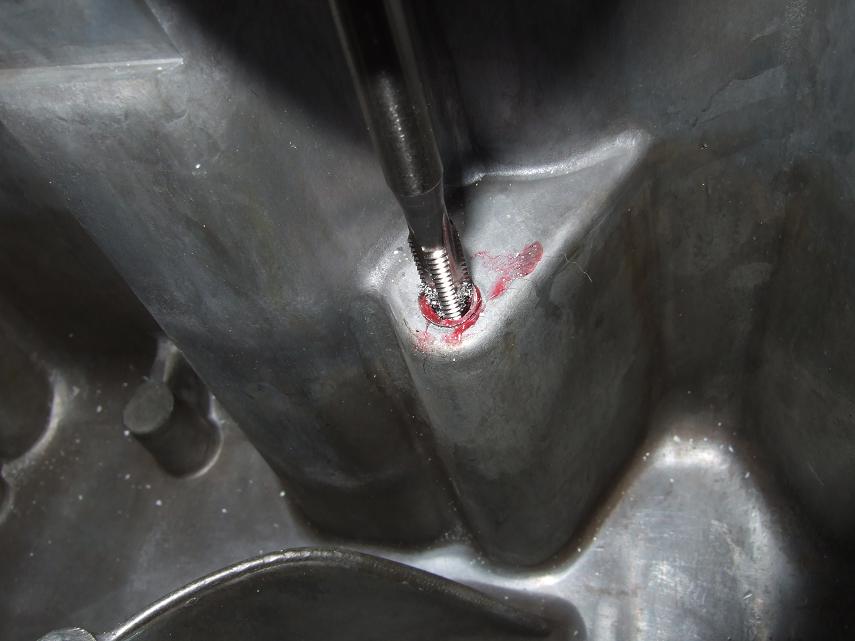

Flatten the baffle mounting towers and drill/tap threads for re installation.
Attachment:
Sump006.JPG [ 59.28 KiB | Viewed 1247 times ]

dummy fit the baffle, and when ready bolt down with some nice stainless hex bolts, with loctite 262
Attachment:
Sump007.JPG [ 83.58 KiB | Viewed 1629 times ]

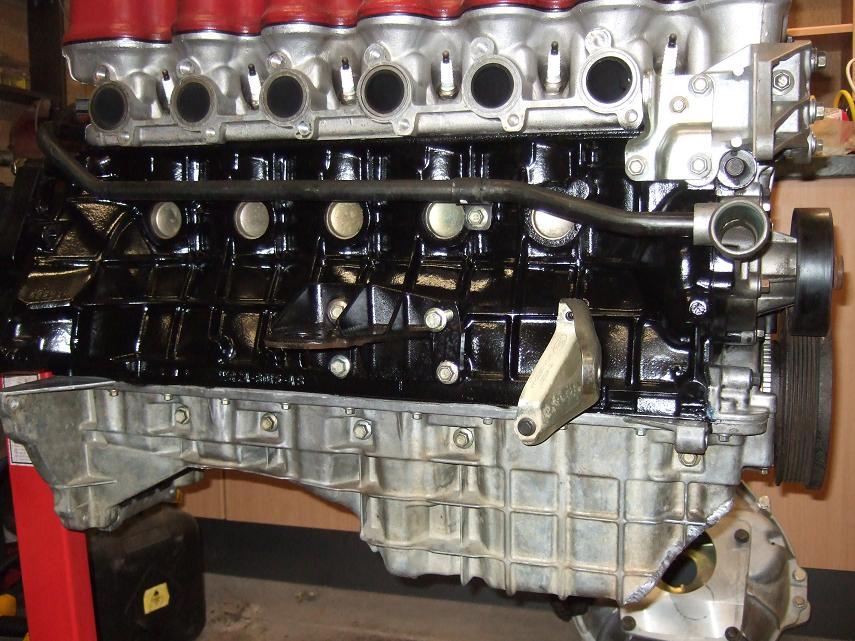

When done, It should look like this
Attachment:
Sump008.JPG [ 117.06 KiB | Viewed 1497 times ]


On the downside, you loose around 250ml oil capacity, However its not enough to really worry about.

By modding the sump you don't risk any structural part of the car ie: K-frame and you don't need an engineers certificate.






_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Sun Jun 21, 2009 11:53 pm
Getting Side Ways
Offline
User avatar

Posts: 1539

Joined: 7th Mar 2007

Ride: ED Pwnage Pwr!!

Location: onawhoopwhoop
SA, Australia

Thats some nice work right there! :)

Good job!



_________________

Adelaide Motorplex < Click on it! You know you want too!
ED HP AU XR6, Wade, T5, and all the usual stuff!

Quote:
Thats not the point *a**hole

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Mon Jun 22, 2009 11:12 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 2425

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

Nice work Krytox, after reading that it makes it seem much easier than i thought it would be. A lot easier than stuffing around with cutting and welding the k frame and then getting a cert later on. I'll remember this if i ever need to chuck an AU bottom end into my EF :)



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Thu Aug 27, 2009 2:50 pm
Getting Side Ways
Offline
User avatar

Posts: 3331

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

couple of questiions.....how did u cut the sump?
how thick is the plate u welded on
where can i get a piece of plate from?



_________________


Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Fri Aug 28, 2009 1:51 am
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

Neat job dude

Did u really have to chop that much of the sump???

How much clearance does it have now from the K frame???



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Sat Feb 06, 2010 10:16 pm
Technical Contributor
Offline
User avatar

Age: 45

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Bit late, but here's the go.

I used 6mm Alloy Plate.

The sump really did need that much cut off,
The pictures look like there's a bit of a gap, but its pretty much just a fingers width.... well mine anyways.

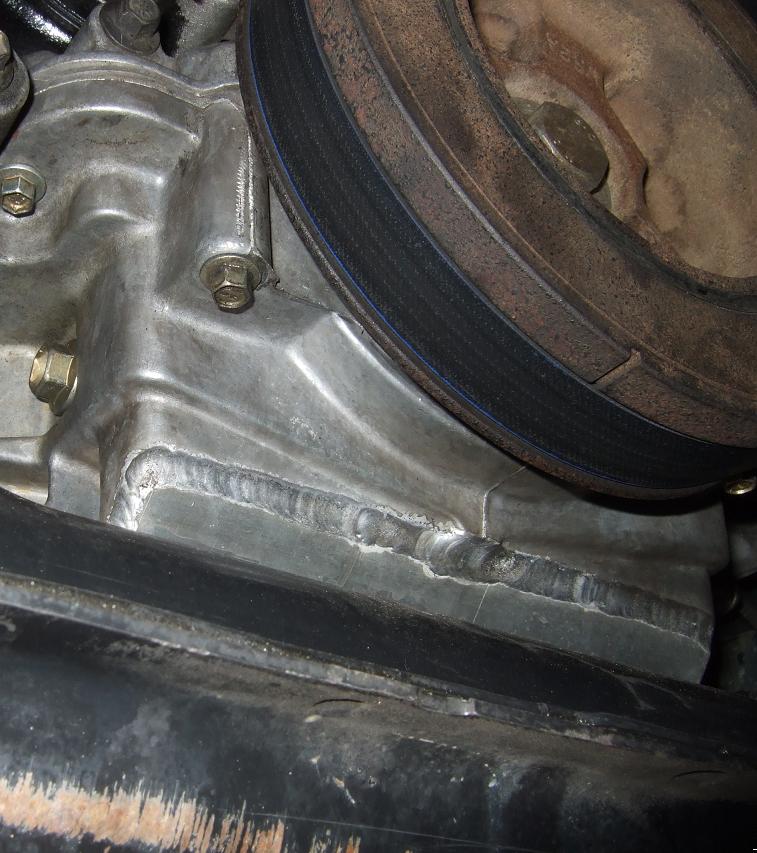

Attachment:
AU Sump3.JPG
AU Sump3.JPG [ 87.68 KiB | Viewed 1263 times ]

Attachment:
AU Sump4.JPG
AU Sump4.JPG [ 98.49 KiB | Viewed 1144 times ]

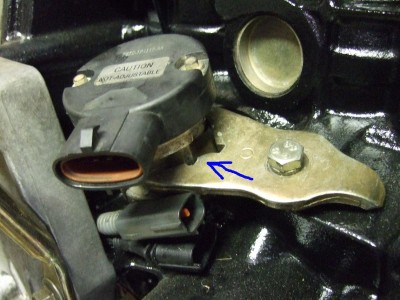

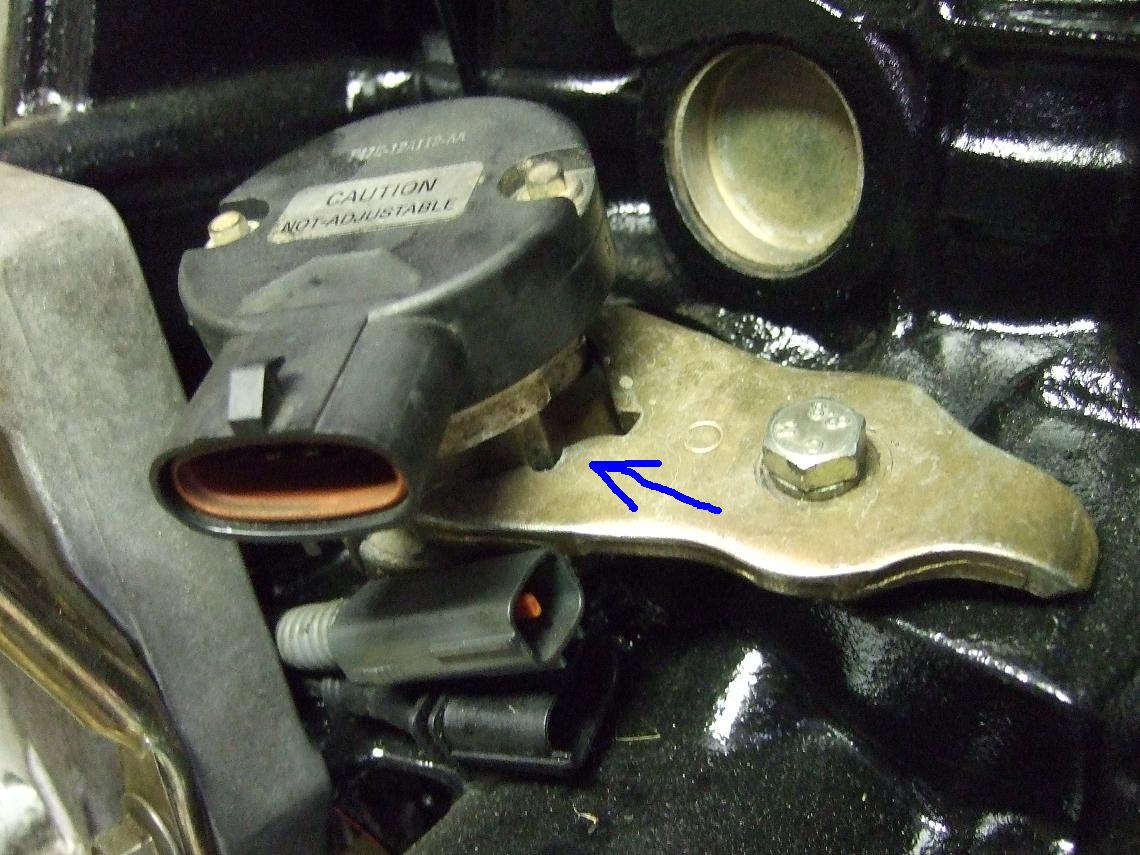

Here's a Picture of how to manipulate the Synchronizer to fit with its bracket 180degrees.
Attachment:
AU Sump2.JPG
AU Sump2.JPG [ 155.04 KiB | Viewed 2891 times ]



You need to cut off around 12mm from the Air-Con Pump spacers as the AU motor has raised mountings on the Block.
So a finishing size of 31mm is perfect.

Its also Easier to Install a AU Alternator rather than cut all the brackets to fit an EF one.

Use the AU Knock Sensor, Remove the plastic plug from the wires and retreive the stainless steel contact. This will plug into the existing EF plug then tape it or Heat shrink it.







_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Sun Feb 07, 2010 11:52 am
Technical Contributor
Offline
User avatar

Age: 45

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

gogetta wrote:
couple of questiions.....how did u cut the sump?

Machine Shop Bandsaw.

Quote:
how thick is the plate u welded on

6mm

Quote:
where can i get a piece of plate from?

Smart Aluminum®, Local Head Machinist/Workshops


If your keen, Print up the Pictures and take the sump to a Fabricator and they 'should' be able to do it for you.

If they cant, never go back there again, they're useless.

I'd expect around to pay around $100-150 to do it.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Wed Jun 09, 2010 10:13 pm
Stock as a Rock
Offline

Age: 33

Posts: 194

Joined: 21st Jan 2010

Gallery: 12 images

Ride: ford falcon ef futura

Location: adelaide
SA, Australia

hey krytox looking at doin a au conversion and have got a questions.
sory if the question sound stupid but im stil learning :)

1. (Flatten the baffle mounting towers and drill/tap threads for re installation) i dont understand :?
2. will my knock sensor off my ef fit or even work with the au engine setup?

cheers anthony
Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Thu Jun 10, 2010 11:52 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Very nice work dude, i think this needs to be made into a tech doc pdf file!

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Fri Jun 11, 2010 8:37 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 3382

Joined: 11th Mar 2008

Ride: EA SVO, AU2, Toyota Crown

Location: Bendigo
VIC, Australia

if doing an AU conversion but using the log manifold can i just bolt that straight on but have to use and XH tensioner and change my auxiliary shaft to the EA one so i can use the dizzy



_________________

Daily driver: 2010 Toyota Crown hybrid 3.5L V6 hybrid. 254kw.
Weekend car: AU2 "XR8" 220kw 5L 5 speed. 19" BBS LM . Full exhaust. Lowered on Kings and Koni's. 13.8@97mph
Fast car: EA SVO AU motor. Built BTR. SDE 3500 stall. 76mm turbo. On E85. approx 425rwkw. 10.8@126mph

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Fri Jun 11, 2010 9:23 am
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

WILDEB wrote:
if doing an AU conversion but using the log manifold can i just bolt that straight on but have to use and XH tensioner and change my auxiliary shaft to the EA one so i can use the dizzy


the log goes straight on..all you have to do is mount the ea aircon bracket to the au block and bolt an el aircon compressor to the ea bracket, this will drop the pump down enough to clear the log manifold then use the xh tensioner..

you dont need to change the aux shaft, but i would use the small gear from the au oil pump drive and fit it to your dizzy.
Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Fri Jun 11, 2010 9:25 am
Technical Contributor
Offline
User avatar

Age: 60

Posts: 5659

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

IIRC it was posted on here that the EF and AU knock sensors had a different signal type ??
Or have I got it wrong ??

BTW, Nice work Andrew.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Fri Jun 11, 2010 9:29 am
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

snap0964 wrote:
IIRC it was posted on here that the EF and AU knock sensors had a different signal type ??
Or have I got it wrong ??

BTW, Nice work Andrew.


afaik they are compatable... i had the au knock sensor wired up to the el ecu and i never got a fault code but i cant confirm if or how well it worked...
Top
 Profile


 Post subject: Re: AU SUMP MOD FOR E-SERIES
Posted: Fri Jun 11, 2010 2:55 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4316

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

I swapped the plugs on my EF so I could use the AU sensor, no issues.
