ef el power steering pump pressure



Page 1 of 1 [ 10 posts ]


 Post subject: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 8:15 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

hey guys

does anyone know what sort of pressure the ef el pump puts out .

reason i ask is ive modded the pump so it wont leak and im going to mod the hose .prob change it to speed flow fittings etc .

cheers guys



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


 Post subject: Re: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 9:28 pm
Technical Contributor
Offline
User avatar

Age: 35

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

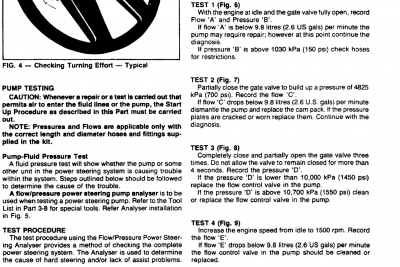

have just had a read of my genuine ford ed manual for the testing of the pump...

It says the special "flow and pressure tester" they made for the job which has a valve on it to increase pressure, connects in series in the pressure line...

It says you cannot turn the valve off for more than 5 seconds at a time (pressures must reach breaking point) and says if pressures exceed 1550psi then you need to clean or replace the flow control valve... So if I said the pump is capable of producing 1550psi does that help?

See the tests listed below...

Attachment:
Untitled.png [ 465.09 KiB | Viewed 435 times ]


Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 9:33 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

yeah that helps thanks mate . looks like i'll be using the teflon hose as its got a higher pressure rating



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


 Post subject: Re: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 9:38 pm
Fordmods Junkie
Offline
User avatar

Posts: 3967

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

TimmyA wrote:
have just had a read of my genuine ford ed manual for the testing of the pump...

It says the special "flow and pressure tester" they made for the job which has a valve on it to increase pressure, connects in series in the pressure line...

It says you cannot turn the valve off for more than 5 seconds at a time (pressures must reach breaking point) and says if pressures exceed 1550psi then you need to clean or replace the flow control valve... So if I said the pump is capable of producing 1550psi does that help?

See the tests listed below...

Attachment:


Cheers,
Tim



does the EA/B/D do the same??
Top
 Profile


 Post subject: Re: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 9:49 pm
Technical Contributor
Offline
User avatar

Age: 35

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

This is for the EA-ED (that's the manual I have...)

EF/EL runs the same pump with a different pulley... Commodores also run this Saginaw pump...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 10:08 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

I would be going for a high pressure hydraulic hose, enzed can make them in high pressure braided to suit, without the stupid swivel o ring joint the ef/au have...
Top
 Profile


 Post subject: Re: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 10:29 pm
Fordmods Junkie
Offline
User avatar

Posts: 3967

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

Top
 Profile


 Post subject: Re: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 11:04 pm
Technical Contributor
Offline
User avatar

Age: 35

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Troyman wrote:
I would be going for a high pressure hydraulic hose, enzed can make them in high pressure braided to suit, without the stupid swivel o ring joint the ef/au have...


Yep... All they needed was the normal taper seat hydraulic fitting and they would have never leaked... Instead of fitting an O ring seal to a 1500psi system...

For some reason Ford decided that they need to have the pipe swivel once it was tight... Even my ED one has never given any trouble... But the EF onward style was rather poor...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 11:40 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

Mad2 wrote:
so.... i shuld be ok running a AU pump with a EA/B rack?



yea it will be fine, other than the different pulley they are the same pump..
Top
 Profile


 Post subject: Re: ef el power steering pump pressure
Posted: Tue Jun 04, 2013 11:50 pm
Fordmods Junkie
Offline
User avatar

Posts: 3967

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

Top
