Lame as..posibly another engine to replace..



Page 2 of 4 [ 51 posts ] Go to page Previous  1, 2, 3, 4  Next

Post New Topic Post Reply  Previous topic Next topic

XRFan101
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 5:37 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia
Ahh k, yeah i might give it a try doing it like that. I was gonna change the oil filter and put new oil in after i replaced it ne ways, can u get to the filter from much the same way?



_________________

Image -BF MKII XR6 Turbo in EGO-
Top
 Profile


XRFan101
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 5:43 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia
ashcook wrote:
If it looks similar to this, thenit is definitely a switch and NOT what you need

Attachment:


I can't find an image of a sender but they have a plastic body about 2 inches from the hex base. Much longer than a switch, hence why they break so easily.

I found the easiest way to get access is to remove the airbox and snorkel and go in form the front under the BBM.


It looks similar, but it reads on the packet Oil Pressure Sender, has a screw base with a plastic bit with has a small spade terminal sticking out of it..

So is this the thingy that is worn and leaking oil.. or am i missing something here and its something different.. Lol this thing only cost me $13 and the Ford oil pressure switch is $40+ i got NFI if its the same thing lol...sigh.



_________________

Image -BF MKII XR6 Turbo in EGO-
Top
 Profile


4LEDboy
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 6:04 pm
Getting Side Ways
Offline
User avatar

Posts: 1539

Joined: 7th Mar 2007

Ride: ED Pwnage Pwr!!

Location: onawhoopwhoop
SA, Australia
ashcook wrote:
I'd say most likely you got a oil switch, not a sender. Can you put up a photo. Should have cost you $50-$60 for a sender.


Yeah I got one wating t the shop for me, a tridon $66



_________________

Adelaide Motorplex < Click on it! You know you want too!
ED HP AU XR6, Wade, T5, and all the usual stuff!

Quote:
Thats not the point *a**hole
Top
 Profile


XRFan101
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 7:06 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia
Hmmm.. ill borrow my sisters phone haha my digital camera shat itself ages ago. will upload a pic asap.



_________________

Image -BF MKII XR6 Turbo in EGO-
Top
 Profile


XRFan101
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 7:17 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia
http://i614.photobucket.com/albums/tt22 ... 009420.jpg
http://i614.photobucket.com/albums/tt22 ... 009416.jpg

Thier we go



_________________

Image -BF MKII XR6 Turbo in EGO-
Top
 Profile


4LEDboy
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 7:28 pm
Getting Side Ways
Offline
User avatar

Posts: 1539

Joined: 7th Mar 2007

Ride: ED Pwnage Pwr!!

Location: onawhoopwhoop
SA, Australia
Thats a switch, not a sensor :)



_________________

Adelaide Motorplex < Click on it! You know you want too!
ED HP AU XR6, Wade, T5, and all the usual stuff!

Quote:
Thats not the point *a**hole
Top
 Profile


MadMatt
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 7:36 pm
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia
Here you go...





Attachments:

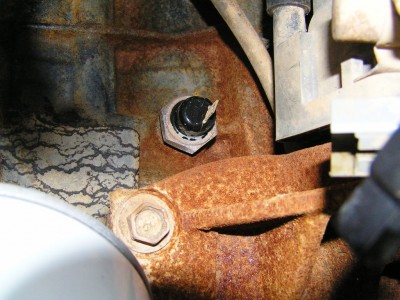

File comment: Switch
Switch.JPG [ 198.48 KiB | Viewed 201 times ]

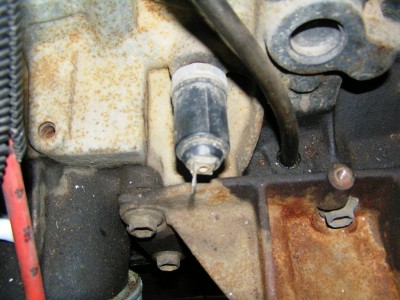

File comment: Sender
Sender.JPG [ 202.34 KiB | Viewed 217 times ]



_________________

Member Number 8804
Top
 Profile


XRFan101
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 7:51 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia
So your saying i need the oil pressure Switch?? as in the one in the first pic madmatt took? And thats the little bugger thats near the oil filter?

I dont know the difference haha that prolly why i got the wrong one! :roll:



_________________

Image -BF MKII XR6 Turbo in EGO-
Top
 Profile


MadMatt
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 7:53 pm
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia
Switch (on off)
Sender is what you need.



_________________

Member Number 8804
Top
 Profile


XRFan101
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 9:47 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia
Ahhh i see now. So i shall go buy a sender then from Ford i think lol.



_________________

Image -BF MKII XR6 Turbo in EGO-
Top
 Profile


XRFan101
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Thu Oct 01, 2009 9:48 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia
Thanks for that fellas!



_________________

Image -BF MKII XR6 Turbo in EGO-
Top
 Profile


XRFan101
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Tue Oct 06, 2009 12:37 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia
Well, it was definately the oil pressure sender that was leaking the oil, the unit has actually snapped ( the plastic part of it) and the wire was disconnected. So the fresh oil was just leaking straigh out from where it was snapped... I took out the airbox to get to it easier, im piccking up a new one tommorrow.

Does it require alot of torque to screw the unit in/out and what type of tool is best used to remove it.? Im guessing at shifter spanner or a closed spanner of some sort.



_________________

Image -BF MKII XR6 Turbo in EGO-
Top
 Profile


EBMontTom
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Tue Oct 06, 2009 12:45 pm
Stock as a Rock
Offline

Age: 36

Posts: 109

Joined: 1st Nov 2006

Ride: EL XR6
Damn straight, but for me it was the other way around. I wanted a switch and they gave me a sender. Pity I didnt realise until the mechanic put it on and I still had the same symptoms.
Waste of $60.

ashcook wrote:
4LEDboy wrote:
Thats a switch, not a sensor :)


Mate, that wouldn't be the first time a parts shop has sold someone a switch when they asked for a sensor. Take it back and explain it again. What a pain in the butt!



_________________

EL XR6 Manual
Tickford Kit, 18" ANZ's, Kings SL/SSL & Sachs.
Top
 Profile


XRFan101
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Tue Oct 06, 2009 1:41 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia
Wicked thanks mate, i will be careful lol i dont wanna have to pay for another.. So does it need to be done up really tight?



_________________

Image -BF MKII XR6 Turbo in EGO-
Top
 Profile


MadMatt
 Post subject: Re: Lame as..posibly another engine to replace..
Posted: Tue Oct 06, 2009 1:43 pm
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia
Firm with a lap of thread tape on it.



_________________

Member Number 8804
Top
 Profile
