 Post subject: common rust in ea-ed fords
Posted: Fri Aug 27, 2010 9:54 pm
Getting Side Ways
Offline

Age: 33

Posts: 428

Joined: 21st Feb 2009

Gallery: 1 images

Ride: BA XR6, EA Brock Falcon

Location: Drouin
VIC, Australia

hey guys

just wondering where the common rust area's are in ea-ed fords are, and how easy the areas are to repair as im about to inherit a ea brock falcon and wondering how much im looking it for repairing the rust affected areas in the rear guards.

cheers

mitch
Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Fri Aug 27, 2010 11:16 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Dog legs rust out, they start to rust around the bottom of the front guard if they don't get the crap cleaned out that accumulates there. They can also rust around the rear door strikers, when they get higher mileage & start to crack the welds.....

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|{DESCRIPTION}|{DESCRIPTION}|{DESCRIPTION}|

Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Sat Aug 28, 2010 12:14 am
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

the rear wheel arches are prone to rust and the sill panels aswell
Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Sat Aug 28, 2010 12:19 am
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

{USERNAME} wrote:
the rear wheel arches are prone to rust and the sill panels aswell



In area's near the sea the sill's are, away from the sea i have not seen many that rust there, without something causing damage to give the rust a helping hand....

The dog legs probably rust because not many ppl remove the C pillar cap's & clean the crap out that collects there very often. I do mine twice a year at least.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|{DESCRIPTION}|{DESCRIPTION}|{DESCRIPTION}|

Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Sat Aug 28, 2010 9:09 am
Getting Side Ways
Offline

Age: 34

Posts: 971

Joined: 18th Dec 2008

Ride: BA Futura

Location: Hobart
TAS, Australia

Also the top of the front or rear wind shield where the rubber meets with the panel. I've seen a few rust there, usually towards the side rather than the middle.

And the tow bar bits inside the boot too, but that isn't a big issue.



_________________

DCII LTD V8 - leather - low k's
1978 XC '1/2' 500 project 302C
BA Futura wagon
P38 Range Rover HSE

Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Sat Aug 28, 2010 10:01 am
SA Cruise Moderator
Offline
User avatar

Age: 37

Posts: 1870

Joined: 14th Apr 2006

Ride: 1993 EBll xr6, 2003 ba xt

Power: 150 rwkw

Location: Whyalla
SA, Australia

the only place my ebll has rust is the sill panels had a quote to get it repaired and the best one i came up with was for $2000 all up



_________________

Owning 1 of 84,847 ebII.
2x clarion subs 1200w, 1x clarion amp 400w, pioneer headunit, 16x8 roh reflex.
Clear side, front indicators, White dials, trip computer, boot spoiler, K & N air filter.
35% tint, paint code (z) stark white, 3" crome nudge bar, Xh snorkle

Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Sat Aug 28, 2010 9:49 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

{USERNAME} wrote:
the only place my ebll has rust is the sill panels had a quote to get it repaired and the best one i came up with was for $2000 all up



That's way too much to cut a couple of sills off & weld on some new ones, then paint them up!

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|{DESCRIPTION}|{DESCRIPTION}|{DESCRIPTION}|

Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Sat Aug 28, 2010 10:27 pm
Getting Side Ways
Offline

Age: 41

Posts: 1046

Joined: 31st Mar 2005

Gallery: 2 images

Ride: ef falcon, el fairmont ghia

Location: Christchurch
New Zealand

it really depends where you live, i just stripped an eb2 and didnt find one bit of rust
Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Sun Aug 29, 2010 3:41 am
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Around the wheel arches and underneath on the inside of the sill panels...

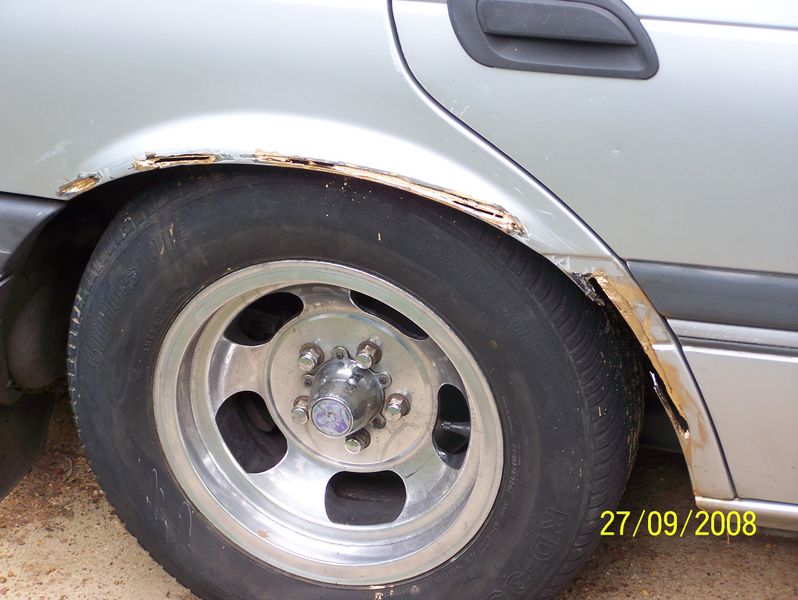

Here is one I prepared earlier:


All the missing metal was badly rusted.. I replaced it all with my MIG welder and it was fine...
Later on I replaced the car with an EL and it was even better. :-)
Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Sun Aug 29, 2010 2:03 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 5881

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: 2021 Amarok V6

Location: Port Lincoln
SA, Australia


metal nom nom nom.... EL wagon.



_________________

2021 V6 Manual Amarok - 245kw/750nm - many goodies
1997 EL Fairmont Ghia 4.0 - Heritage Green & Cappa
2010 Suzuki GSX650F - when I want to be silly

Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Mon Aug 30, 2010 11:06 am
Stock as a Rock
Offline

Age: 33

Posts: 196

Joined: 11th May 2008

Location: Mt Barker
SA, Australia

Both my sills were stuffed and so was back 1/4. but I had a damaged LTD. so I cut the rear 1/4 lip part out and welded it to the EB. And my bro in law welded straight peicecs of steel in the sills place.

I used Flares and side skirts to hide the different shapes.
Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Mon Aug 30, 2010 7:18 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 5881

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: 2021 Amarok V6

Location: Port Lincoln
SA, Australia

i was working on a 2004 Territory today at work, pulled the weatherstrip/rubber seal out from around the boot aperture, and where the panels join along the bottom should normally be about 3-4mm thick, this one was over 1cm thick bulging with rust :shock: not just one spot, but about a metre of the aperture is like it...



_________________

2021 V6 Manual Amarok - 245kw/750nm - many goodies
1997 EL Fairmont Ghia 4.0 - Heritage Green & Cappa
2010 Suzuki GSX650F - when I want to be silly

Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Wed Sep 01, 2010 9:45 pm
Getting Side Ways
Offline

Age: 33

Posts: 428

Joined: 21st Feb 2009

Gallery: 1 images

Ride: BA XR6, EA Brock Falcon

Location: Drouin
VIC, Australia

cheers guys, just trying to get a rough idea of how much coin i will need to save/loan for this project, and trying to deciede wether it is worth it or not.

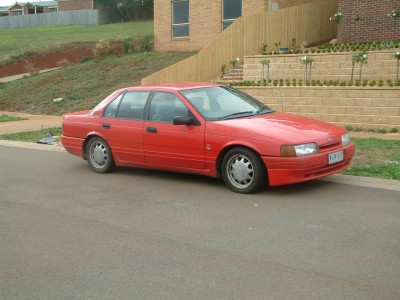

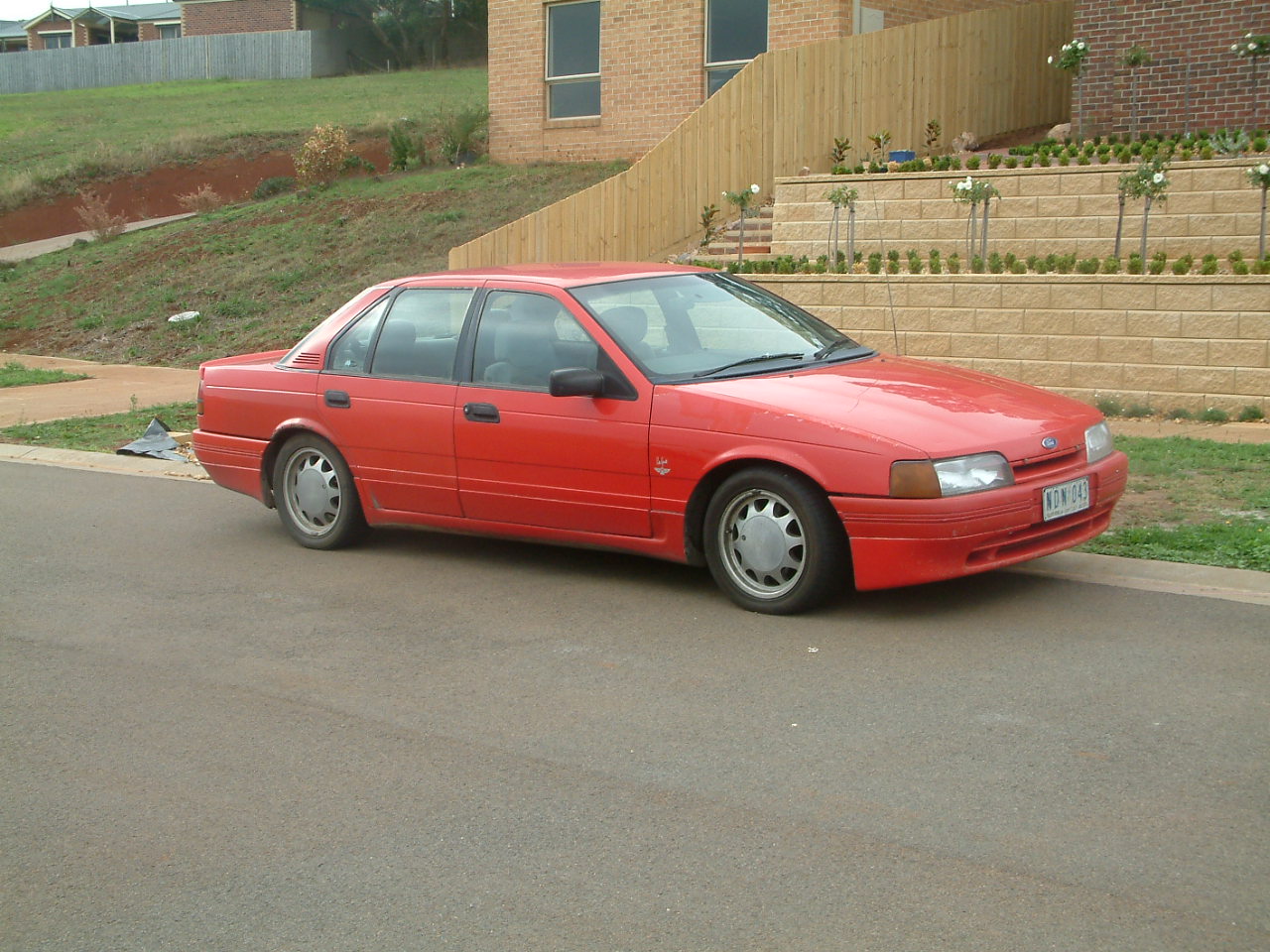

Attachment:
DSCF0052.JPG [ 278.69 KiB | Viewed 248 times ]
Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Wed Sep 01, 2010 10:00 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

{USERNAME} wrote:
cheers guys, just trying to get a rough idea of how much coin i will need to save/loan for this project, and trying to deciede wether it is worth it or not.


Attachment:


You could do a short tafe course in panel beating & welding, then do that part yourself, and put it into a shop for the paint job.

Otherwise, get some panels, a panel beating kit & give them a go. I'm getting much better since i started on the rust & panel work on my torana. Still more to do, but the rust is gone.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|{DESCRIPTION}|{DESCRIPTION}|{DESCRIPTION}|

Top
 Profile


 Post subject: Re: common rust in ea-ed fords
Posted: Thu Sep 16, 2010 1:39 am
Parts Gopher
Offline

Posts: 76

Joined: 7th Jan 2008

Ride: xg van and ute

Location: shitville perth w.a
WA, Australia

brocks are every rare and since his death any thing brock is worth big $$$
well maybe not the lada but
just go on evil buy and type in brock
Top
