Guide on how to remove the FG ICC and dismantle it


I had a few of the guys with FGs ask me how to pull their ICCs apart so they can play around with them. So I figured I'd just make a short guide on how to for anyone that is looking to do it.
the-garage-f53/2dads-xr6-fg-build-t118388.html


Video on how to remove the ICC now on youtube

I made a video guide on how to do this, so that it was a bit easier for people to see exactly how to do this.

Vid can be found here
Edit**
I created a new video as I wasn't happy with the quality of the last one. This new one is much better and will hopefully be good enough.
{DESCRIPTION}

Tools you'll need are
Phillips head screwdriver
Small flat head screwdriver
Socket wrench or socket screw driver with 6mm socket

The first time you do this it takes about 30 minutes but after doing it a couple times you can easily get it down to 10.

So here we go.

Step 1:
Disconnect the battery

Step 2:

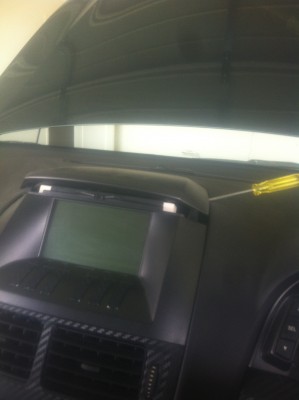

Use the small flat head screw driver to lift the panel on top of the unit off.
This thing is held on by some pretty big clips so don't be scared when it starts making some odd noises.
Attachment:
ICC 1.jpg
ICC 1.jpg [ 491.84 KiB | Viewed 1040 times ]

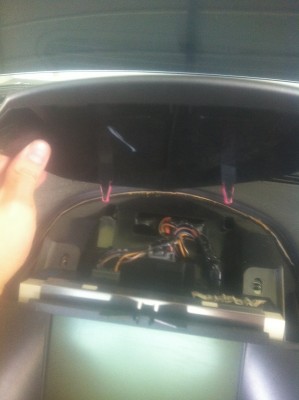

You'll see what I mean by big clips in the next picture.

Step 3:
You'll see two metal brackets, each has a screw in it securing the unit to the dash.
Undo these screws.
Attachment:
ICC 2.jpg
ICC 2.jpg [ 466.74 KiB | Viewed 1034 times ]

You'll notice that the screws are not shown in this picture, only the holes where they belong. It seems last time I took the unit out I decided I didn't need them....

Step 4:

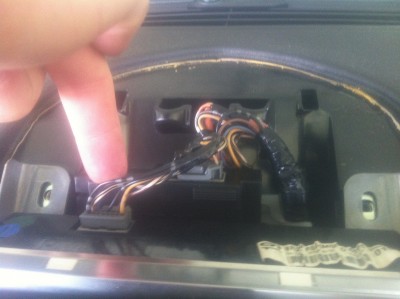

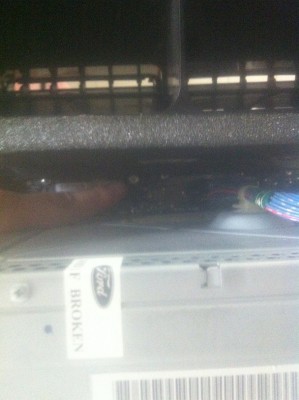

Unplug these grey cables from the top of the unit.
Give them a little wiggle to get them loose if you have to.
Attachment:
ICC 3.jpg
ICC 3.jpg [ 477.29 KiB | Viewed 909 times ]


Step 5:

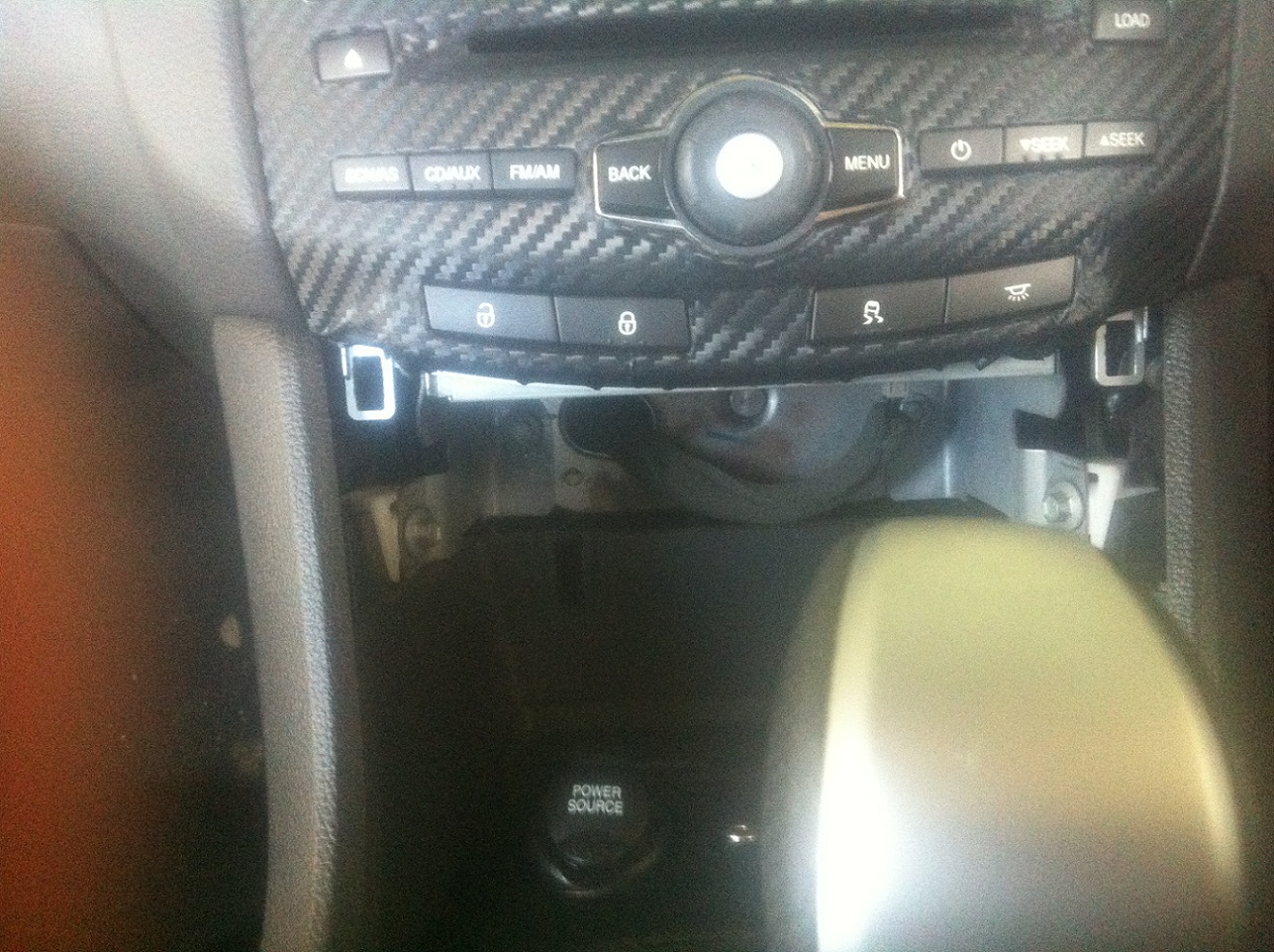

Grab the tissue box holder and pull it out. It's held in by a big clip on each side so it may need a bit of encouragement.
Remove the 4 hex head screws you can now see holding the unit in.
Unplug the small grey wire from the bottom of the unit
Attachment:
ICC 4.jpg
ICC 4.jpg [ 486.58 KiB | Viewed 989 times ]


Step 6:

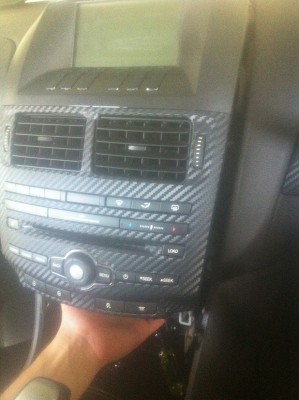

Get one hand on top of the unit and one hand underneath and gently pull it out of the dash.
Attachment:
ICC 5.jpg
ICC 5.jpg [ 484.17 KiB | Viewed 934 times ]


Step 7:

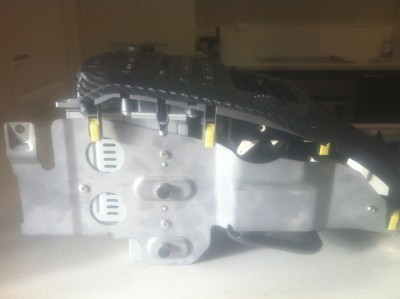

Now that you've got the unit out of the dash you'll see 4 screws on each side holding the big brackets on to it.
Undo these screws.
Attachment:
ICC 6.jpg
ICC 6.jpg [ 492.13 KiB | Viewed 915 times ]


Step 8:
Next take out the 5 screws down each side of the unit. These screws hold the screen, air vents and cd player in.
I find the best order to undo them in is from top to bottom, that way nothing falls out when you don't want it to.
Attachment:
ICC 7.jpg
ICC 7.jpg [ 453.81 KiB | Viewed 908 times ]

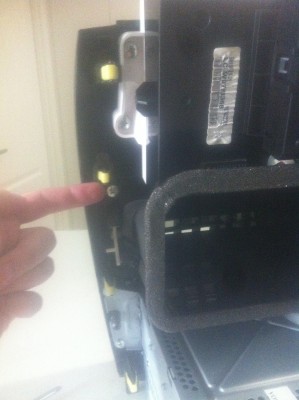

There is also a screw under the air vents that holds them in. Don't forget to undo this one as well.
Attachment:
ICC 8.jpg
ICC 8.jpg [ 487.06 KiB | Viewed 885 times ]


Step 9:

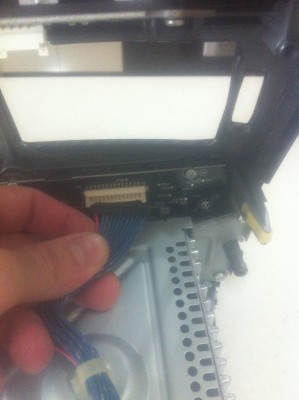

When you get the air vents out unplug this little cable.
Attachment:
ICC 9.jpg
ICC 9.jpg [ 489.98 KiB | Viewed 892 times ]

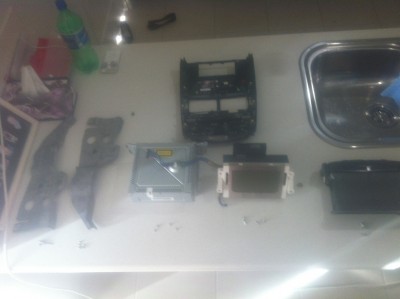

Your bench should now look something like this.
Attachment:
ICC 10.jpg
ICC 10.jpg [ 492.37 KiB | Viewed 997 times ]

Next we'll take the silicone boards off the facade so we can get to the buttons.



_________________

{DESCRIPTION}

Last edited by 2dads on Tue Jul 15, 2014 9:17 pm, edited 2 times in total.

Top
 Profile


 Post subject: Re: How to Remove and Dismantle the FG ICC
Posted: Tue Jan 08, 2013 11:32 am
Technical Contributor
Offline

Age: 33

Posts: 156

Joined: 3rd Nov 2011

Ride: 2009 XR6 FG N/A

Location: Townsville
QLD, Australia

Step 10:

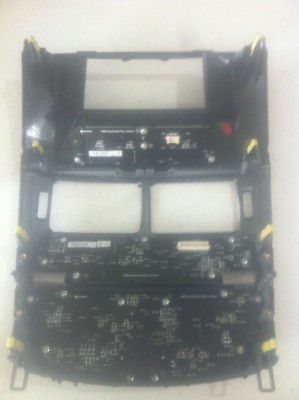

Take a look at the silicon boards you've got exposed now.
There are A LOT of screws holding these three little guys in.All the screws are numbered.
When you undo the screws undo them from the highest number to the lowest.
Attachment:
ICC 11.jpg
ICC 11.jpg [ 498.9 KiB | Viewed 925 times ]


Step 11:

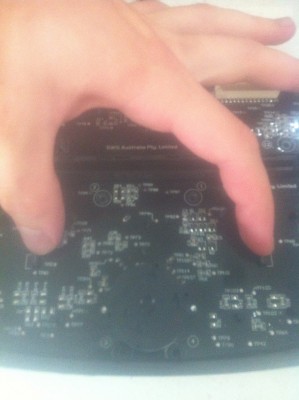

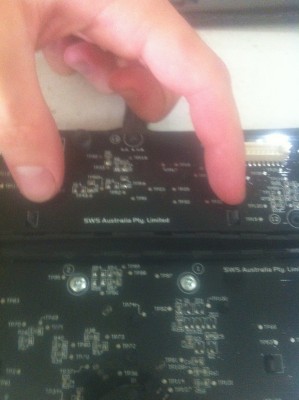

Removing the boards is simple, however note there are two sets of clips holding them in, they WILL NOT come up without undoing these clips first. Probably the easiest way to break your ICC is to try and lift these boards up without undoing the clips.
Attachment:
ICC 12.jpg
ICC 12.jpg [ 476.54 KiB | Viewed 924 times ]


Attachment:
ICC 13.jpg
ICC 13.jpg [ 480.55 KiB | Viewed 872 times ]


Step 12:

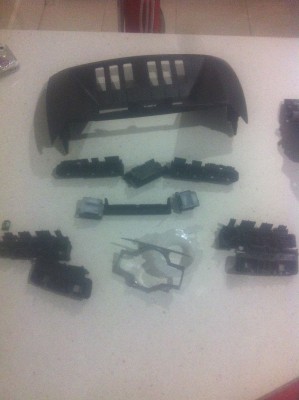

Not really a step, but once you have the silicon boards out most of the buttons will easily fall out.
Some are held in with small clips etc, but I thought it would be insulting to assume people don't know how to undo some small clips
Attachment:
ICC 14.jpg
ICC 14.jpg [ 476.97 KiB | Viewed 890 times ]

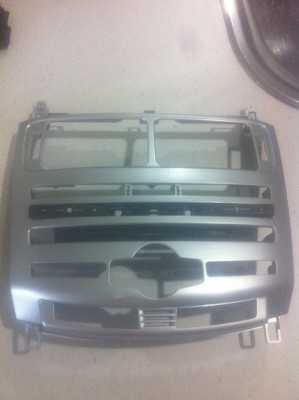

And there it is. The facade out of the car. Ready for a new vinyl wrap to be added for some extra pretty in your interior :)
Attachment:
ICC 15.jpg
ICC 15.jpg [ 489.02 KiB | Viewed 938 times ]

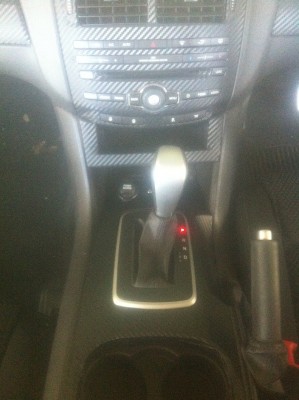

Hopefully your end result will look something like this, or better.
Attachment:
23 smaller.jpg
23 smaller.jpg [ 462.09 KiB | Viewed 929 times ]



_________________

{DESCRIPTION}

Top
 Profile


 Post subject: Re: How to Remove and Dismantle the FG ICC
Posted: Tue Jan 08, 2013 12:24 pm
Getting Side Ways
Offline

Age: 32

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

mate thats an EXCELLENT amount of detail... good work, might even get your first STICKY if there is a mod thats interested...

thank you VERY much that will make me a lot less likely to break everything in the process :lol:



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: How to Remove and Dismantle the FG ICC
Posted: Tue Jan 08, 2013 1:03 pm
Getting Side Ways
Offline

Age: 33

Posts: 1472

Joined: 11th Jan 2011

Gallery: 5 images

Ride: Vixen Red 09 FG XT

Location: Dalby
QLD, Australia

Nice man. Very informative.



_________________

VIXEN FG XT Previous best - 14.431 @ 99.69mph with minor mods
Currently 14.235 @ 101mph same mods. Bring on the 13's!

Top
 Profile


 Post subject: Re: How to Remove and Dismantle the FG ICC
Posted: Tue Jan 08, 2013 1:29 pm
Moderator
Offline
User avatar

Age: 47

Posts: 2486

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

Good work. Let us know when your happy with how everything is detailed and we will lock it as a sticky. :P



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: How to Remove and Dismantle the FG ICC
Posted: Tue Jan 08, 2013 4:06 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

now a sticky
Top
 Profile


 Post subject: Re: How to Remove and Dismantle the FG ICC
Posted: Mon Feb 18, 2013 7:09 pm
Fordmods Newbie
Offline

Age: 31

Posts: 3

Joined: 13th Oct 2012

Ride: 2011 FG XR6

Location: Brisbane
QLD, Australia

Thanks heaps for taking the time to do this man. Made taking apart the ICC so much easier with something to reference. Did mine in vinyl wrap like yours, looks sweet. :D
Top
 Profile


 Post subject: Re: How to Remove and Dismantle the FG ICC
Posted: Wed Apr 02, 2014 11:06 pm
Technical Contributor
Offline

Age: 33

Posts: 156

Joined: 3rd Nov 2011

Ride: 2009 XR6 FG N/A

Location: Townsville
QLD, Australia

I'm going to make a video version of these instructions
Started recording today, so the video should be done and up on youtube tomorrow.
Should I make a separate thread for it, or add it in to the start of this one?



_________________

{DESCRIPTION}

Top
 Profile


 Post subject: Re: How to Remove and Dismantle the FG ICC
Posted: Wed Apr 02, 2014 11:12 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

{USERNAME} wrote:
I'm going to make a video version of these instructions
Started recording today, so the video should be done and up on youtube tomorrow.
Should I make a separate thread for it, or add it in to the start of this one?


best to add to this thread in the first post... :)
Top
 Profile


 Post subject: Re: How to Remove and Dismantle the FG ICC
Posted: Sun Apr 06, 2014 2:15 am
Technical Contributor
Offline

Age: 33

Posts: 156

Joined: 3rd Nov 2011

Ride: 2009 XR6 FG N/A

Location: Townsville
QLD, Australia

First post now updated to include the video URL :D
