| DREW00 |
|
|||
|
i was wanting to see a picture of where the light goes in at the back of the console on a ba/bf ghia, i have a xr6 and i have taken the cover off but i cannot see or find where i could put the golbe and i was wanting to see how it is done in the ghia.
thanks Last edited by DREW00 on Wed Aug 30, 2006 3:26 pm, edited 1 time in total. |
|||
| Top | |
|||
| jlgw70 |
|
|||
|
The wiring loom for the rear console light is not in the XT or XR (not sure about GT).
I was going to do the same. The hole is there but that is it.
_________________ AG3NT - 2008 FG G6E Turbo / SS Growler Kit / 19 Inch Dark Argent Wheels / ASL RGB System / FPV Cluster / 60lb Injectors / F6 Piping & Intercooler / KPM 15PSI Tune |
|||
| Top | |
|||
| DREW00 |
|
|||
|
i can put the wires in i just need a bulb holder or something there, i just wanted to see where the bulb goes in the ghia. I have out the foot well lights in as i have premo sound, i was wanting to put the light in at the back of the console, there must be another part to put in that holds the golbe in or something
|
|||
| Top | |
|||
| DREW00 |
|
|||||||
|

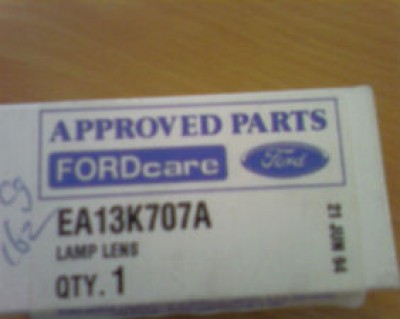

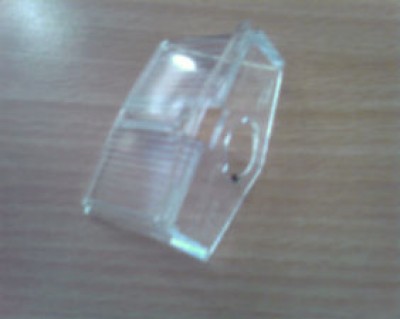

i have found the answer if you just buy the lens part no. EA13K707A it has the holder for the bulb on it.....
|
|||||||
| Top | |
|||||||
| Nicko |
|
|||
|
sweet how much that set ya back?
_________________ Nicko |
|||
| Top | |
|||
| aumatt |
|
||||||
|

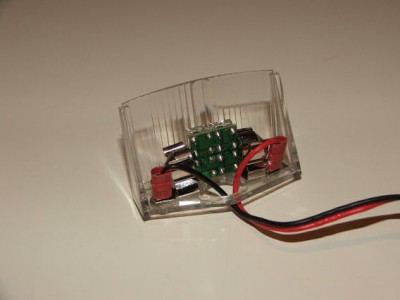

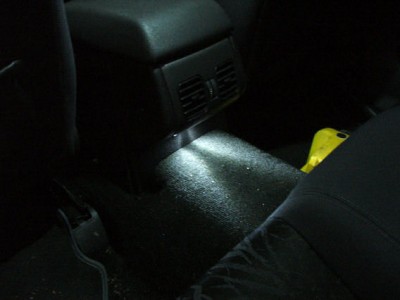

I bought the lens from ford, bought a cheap festoon lamp kit from supercheap auto, a bit of cutting and some wire and I have a very very bright LED console light. I now have a 6chip High Intensity White 41mm festoon LED in there now, looks very nice and took about 1hr at max from start to finish.
_________________ 2004 Harvest Green XR6
|
||||||
| Top | |
||||||
| DREW00 |
|
|||
|
The lens cost $10.00
|
|||
| Top | |
|||
| Nicko |
|
|||
|
wicked ill go grab one!
Where bouts you from Drew? You should come down to a meet! we need to show off some more ba's!
_________________ Nicko |
|||
| Top | |
|||
| DREW00 |
|
|||
|
i am from Hughesdale, which i across the road from chadstone shopping centre, i have been to some meets a while a go, you might remember my old car the bright blue XE Falcon...
|
|||
| Top | |
|||
| Nicko |
|
|||
|
DREW00 wrote: i am from Hughesdale, which i across the road from chadstone shopping centre, i have been to some meets a while a go, you might remember my old car the bright blue XE Falcon...
ahhh thought it was you! im round the corner in oakliegh!
_________________ Nicko |
|||
| Top | |
|||
| vertg0 |
|
|||||||
|

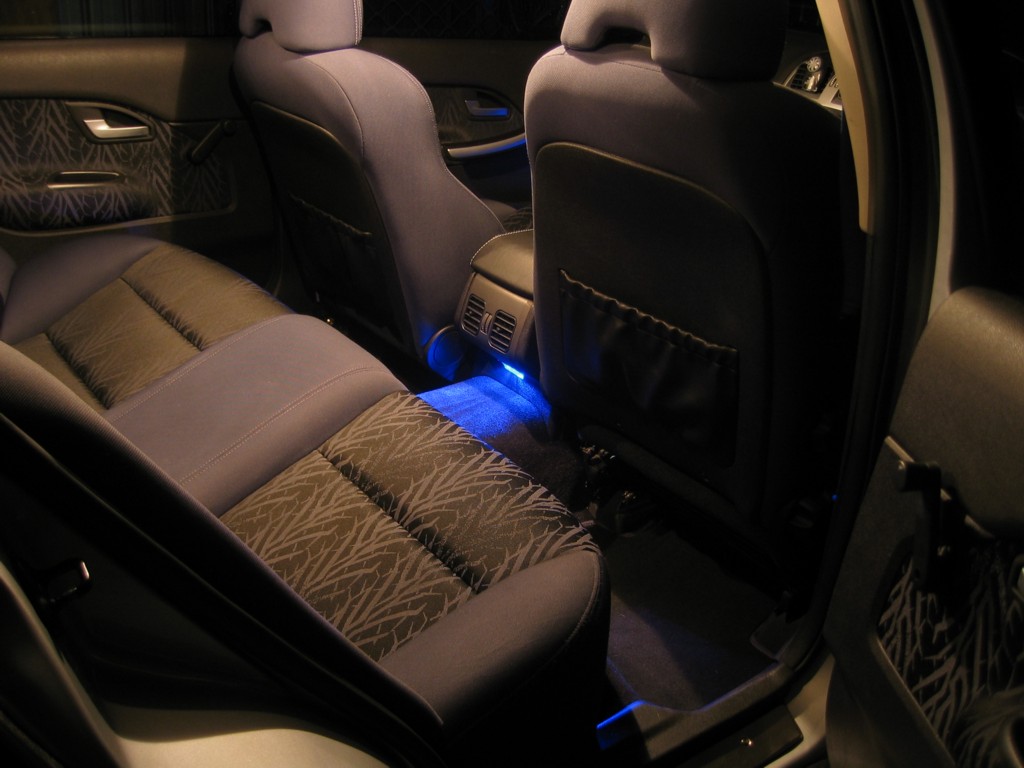

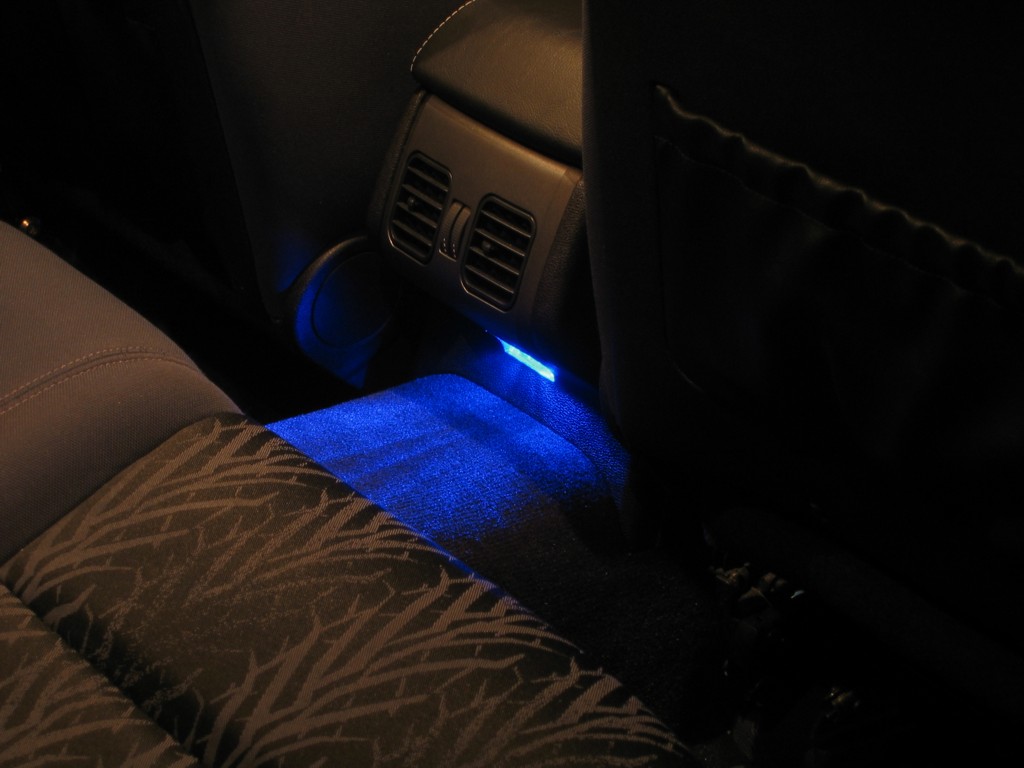

I installed mine over the weekend in Spark Blue, pretty happy with the results.
|
|||||||
| Top | |
|||||||
| Reflections |
|
||
|
WOW that mod is awesome! I hope the XT's have it too. I've got footwell and dome as neon blue that would just set it off!
Good work guys. Tyler
_________________ Silver 2003 BA XT - 2 ported 12" Alpine type R subs, 5 by 7 Alpine type R rears, 5 and half inch Alpine splits up front, Alpine head unit.
|
||
| Top | |
||
| vertg0 |
|
|||
|
The XTs will have the hole for the light/lens at the back of the console but will not have any wiring. You'll need to run this yourself.

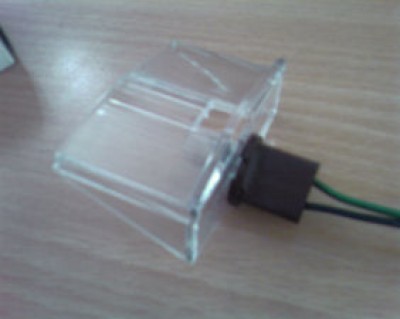

Since I had front footwell neons, I spliced into this wiring and just ran the new cables down the side of the console and into the little hole. The end result is all good. |
|||
| Top | |
|||
| Lukeyson |
|
|||
|
Oooh. I have the brightest T10 I could find in mine, but the bastards are usually directional, and I've never really been happy with the brightness. When the LED points 'up' from th socket, that means most of the light is shining into the guts of the console, and not as much out the lense.
That festoon idea looks to be the trick. Must go and fix now..... Lukeyson Last edited by Lukeyson on Fri Jun 27, 2008 8:58 am, edited 1 time in total. |
|||
| Top | |
|||
| vertg0 |
|
|||
|
Lukeyson wrote: Oooh. I have the brightest T10 I could find in mine, but the bastards or usually direction, and I've never really been happy with the brightness.
Must go and fix now..... Lukeyson I've ALWAYS purchased my LEDs off this chap on ebay called warden_jp2002. He sells VERY BRIGHT LEDs at very reasonable prices. I went into RepCo when I first started doing my mod, and they wanted about $8.00 for one T10. Warden will see you two of them DELIVERED for just over $6.00 with the refractor lens so you get a really good spread of light. Here's an example: http://cgi.ebay.com.au/2pcs-T10-W5W-168 ... dZViewItem |
|||
| Top | |
|||
