| xpnutter |
|
||
|
i have a sereis 2 au dedicated gas and was wanting to know how to tell if it's smart lock or smart shield, there is no flashing red light saying smart lock/smart shiel, im wanting to know this as im going to use the motor ,ecu ,gas syustem into my xp , any help would be great
|
||
| Top | |
||
| TROYMAN |
|
||
|
the key and the remote is the easiest way..

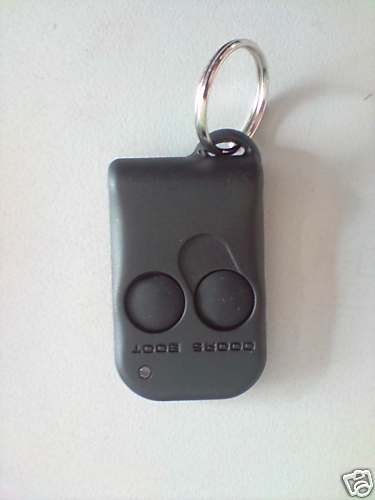

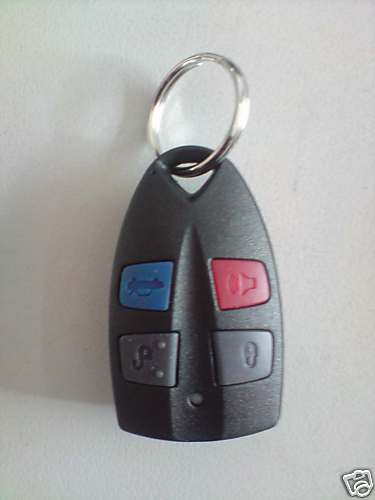

smartlock remote.. Attachment: 90b3_12.jpg [ 9.65 KiB | Viewed 7825 times ] smartshield remote. Attachment: 006e_12.jpg [ 11.23 KiB | Viewed 7745 times ] |
||
| Top | |
||
| xpnutter |
|
||
|
there is no remote, but what do you mean you can tell from the key are they marked?
|
||
| Top | |
||
| TROYMAN |
|
||
|
im pretty sure being a series 2 it should be smart shield..

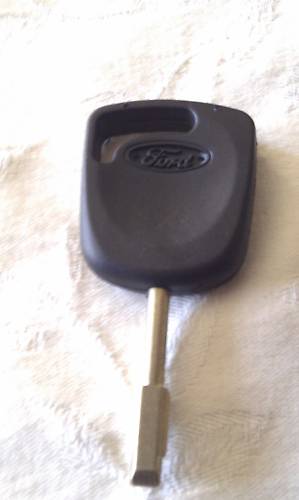

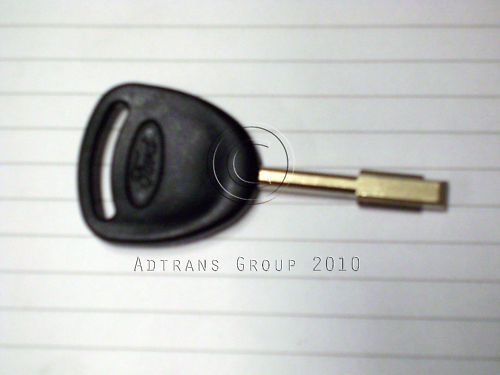

any way the smartshield key is the same as the ba key.. Attachment: !BzyQLdwBGk~$(KGrHqYOKiQEw1umDNuBBM(mmEvYCw~~_12.jpg [ 12.44 KiB | Viewed 552 times ] the smartlock key is the same as e series Attachment: !CDW)OU!BGk~$(KGrHqUOKnIEz6TrDnSKBNOP8KzyU!~~_12.jpg [ 23.57 KiB | Viewed 511 times ] |
||
| Top | |
||
| xpnutter |
|
||
|
yer the key looks like the one you said was smart shield, is it possible to get something to delete the smart shield ,like the smart lock bypass module, and thank you for your help
|
||
| Top | |
||
| fourL6 |
|
|||
|
im pretty sure a flash tune can get rid of the smart sheild, but thats like a $700 box plus a tune...
but you could just use the AU wiring looms
_________________ Was - 2001 AUIII Ford Falcon Forte |
|||
| Top | |
|||
| sly |
|
||
|
TROYMAN wrote: the key and the remote is the easiest way.. smartlock remote.. Attachment: 90b3_12.jpg smartshield remote. Attachment: 006e_12.jpg Wrong, sorry. AU 1.5 models (aka "Smartshield update") have a 2-button remote. AU2's on have the 4-button remote. The change to the remote corresponds to increased BEM functionality in AU2's and is totally independent of the security system. The key is the only definitive way of telling if an AU has Smartshield or Smartlock. Apart, of course, from the "Smartshield" sticker on the left rear fixed quarter window...
_________________ AU1.5 Wagon, Raptor ProStreet kit, Pacemaker 4499's with 3" collector, 3" metal cat, 3" pipe, Pex BSO660 & BSO439, BA brakes, Sprintgas mixer LPG system, Airod variable-venturi mixer... stealth FTW Sniper tuned! |
||
| Top | |
||
| TROYMAN |
|
||
|
sly wrote: TROYMAN wrote: the key and the remote is the easiest way.. smartlock remote.. Attachment: 90b3_12.jpg smartshield remote. Attachment: 006e_12.jpg Wrong, sorry. AU 1.5 models (aka "Smartshield update") have a 2-button remote. AU2's on have the 4-button remote. The change to the remote corresponds to increased BEM functionality in AU2's and is totally independent of the security system. The key is the only definitive way of telling if an AU has Smartshield or Smartlock. Apart, of course, from the "Smartshield" sticker on the left rear fixed quarter window... well ive never heard of a series 1.5 nor are they listed in spare parts.. so my response was not completely wrong based on my information, im not saying there isnt a few change over cars, as we know ford are retards..  but i also posted pics of the different keys.. so if the remote post was wrong my other post was right... so it makes up for it..
|
||
| Top | |
||
| sly |
|
||
|
TROYMAN wrote: well ive never heard of a series 1.5 nor are they listed in spare parts.. so my response was not completely wrong based on my information, im not saying there isnt a few change over cars, as we know ford are retards.. but i also posted pics of the different keys.. so if the remote post was wrong my other post was right... so it makes up for it.. AU1.5 isn't a factory designation AFAIK, it's just what they were called on AFF when this same discussion was had about 3 years ago. It's just quicker than typing "Smartshield Update" all the effing time. May '99 rings a bell for me, it's when power front windows became standard on the Forte as part of the upgrade. This change isn't widely recognised - I had a standup fight with NRMA over my car. They wouldn't accept that the power windows and immobiliser were standard equipment and insisted I list them as options and stipulate a value for them, which I couldn't do because they were standard... even though there was nearly a full year's production in this spec before AU2 came out.
_________________ AU1.5 Wagon, Raptor ProStreet kit, Pacemaker 4499's with 3" collector, 3" metal cat, 3" pipe, Pex BSO660 & BSO439, BA brakes, Sprintgas mixer LPG system, Airod variable-venturi mixer... stealth FTW Sniper tuned! |
||
| Top | |
||
| galapogos01 |
|
|||
Posts: 1139 Joined: 27th Feb 2005 Ride: Supercharged EF Fairmont Location: T.I. Performance HQ |
I have read that AU 1.5 (Smartshield update) cars have the Smartlock style remotes.
Easiest way I know of is dash lamp, ECU box code, or rear 1/4 window glass (should say Smartlock or Smartshield). Jason
_________________ T.I. Performance - Ford Performance Parts & Tuning - J3 Chips & Tuning, Fuel Pumps & Injectors, Camshafts, Haltech ECUs and more! |
|||
| Top | |
|||
| galapogos01 |
|
|||
Posts: 1139 Joined: 27th Feb 2005 Ride: Supercharged EF Fairmont Location: T.I. Performance HQ |
Also, as a side note, the 1.5 cars use AU1 MAP and temp sensors, which use a different transfer to the AU2. Though you can run an AU2 bin in them, it won't work properly due to the difference in sensors.
_________________ T.I. Performance - Ford Performance Parts & Tuning - J3 Chips & Tuning, Fuel Pumps & Injectors, Camshafts, Haltech ECUs and more! |
|||
