 Post subject: Help Identify this diode
Posted: Wed Aug 11, 2010 7:10 pm
Getting Side Ways
Offline
User avatar

Posts: 1412

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

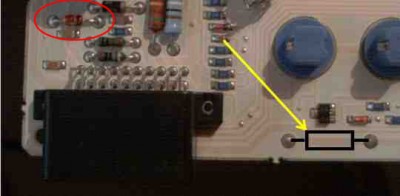

Could someone identify the diode in this picture? (The one circled in red. Not the one with the yellow arrow pointing to it)
I found, by sheer luck that this one was faulty so I used one from another cluster, that I had, to get it to work. Now I'm selling that cluster and want to use the donor cluster. The problem is that I have misplaced the faulty diode which I was going to take to an electronics store to properly identify.
The only piece of info I remember from it is that it had 9V1 written on it.

Without this diode the speedo does not work. It doesnt even pass speed info through to the trip computer.

Cheers for any help.
Paul.





Attachments:
HighResistor.jpg [ 31.52 KiB | Viewed 288 times ]



_________________

EL Fairmont Ghia - Manual - Supercharged
- {DESCRIPTION}
- {DESCRIPTION}

Top
 Profile


 Post subject: Re: Help Identify this diode
Posted: Sat Aug 14, 2010 5:47 pm
Fordmods Newbie
Offline

Posts: 3

Joined: 11th Nov 2005

Location: Karratha
WA, Australia

It looks like a 9V Zener diode part number 1N4739 from Jacar electronics.
Top
 Profile


 Post subject: Re: Help Identify this diode
Posted: Sat Aug 14, 2010 7:06 pm
Getting Side Ways
Offline
User avatar

Posts: 1412

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Thanks worked perfectly.
I went to jaycar and took along one I had that was a similar size so they could pick the right power.



_________________

EL Fairmont Ghia - Manual - Supercharged
- {DESCRIPTION}
- {DESCRIPTION}

Top
 Profile


 Post subject: Re: Help Identify this diode
Posted: Sat Aug 14, 2010 9:12 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1629

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia
